SY335BH 33T Excavator | SANY High-Efficiency Earthmoving Machine
Explore the SY335BH 33-ton earthmoving excavator by SANY, featuring advanced technologies like the Isuzu 6HK1 engine, VGT turbocharger, and upgraded hydraulic and digging systems. With enhanced fuel efficiency, power, and customizable options, this machine is built for high-performance in earthwork tasks.
- Product Details

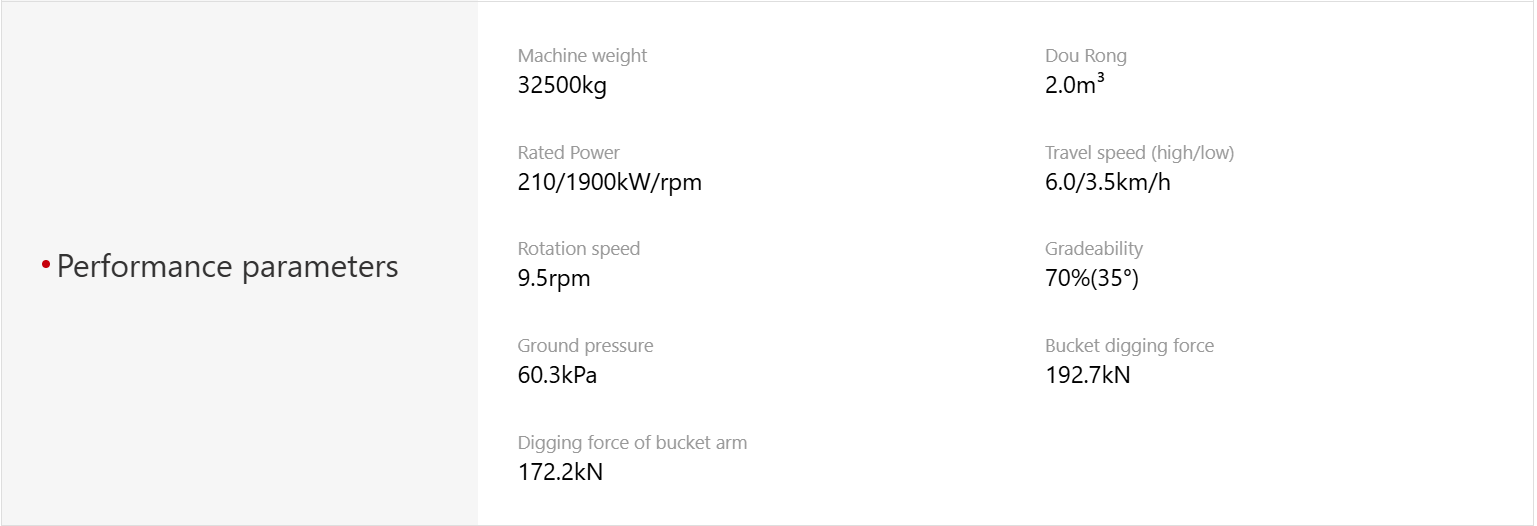

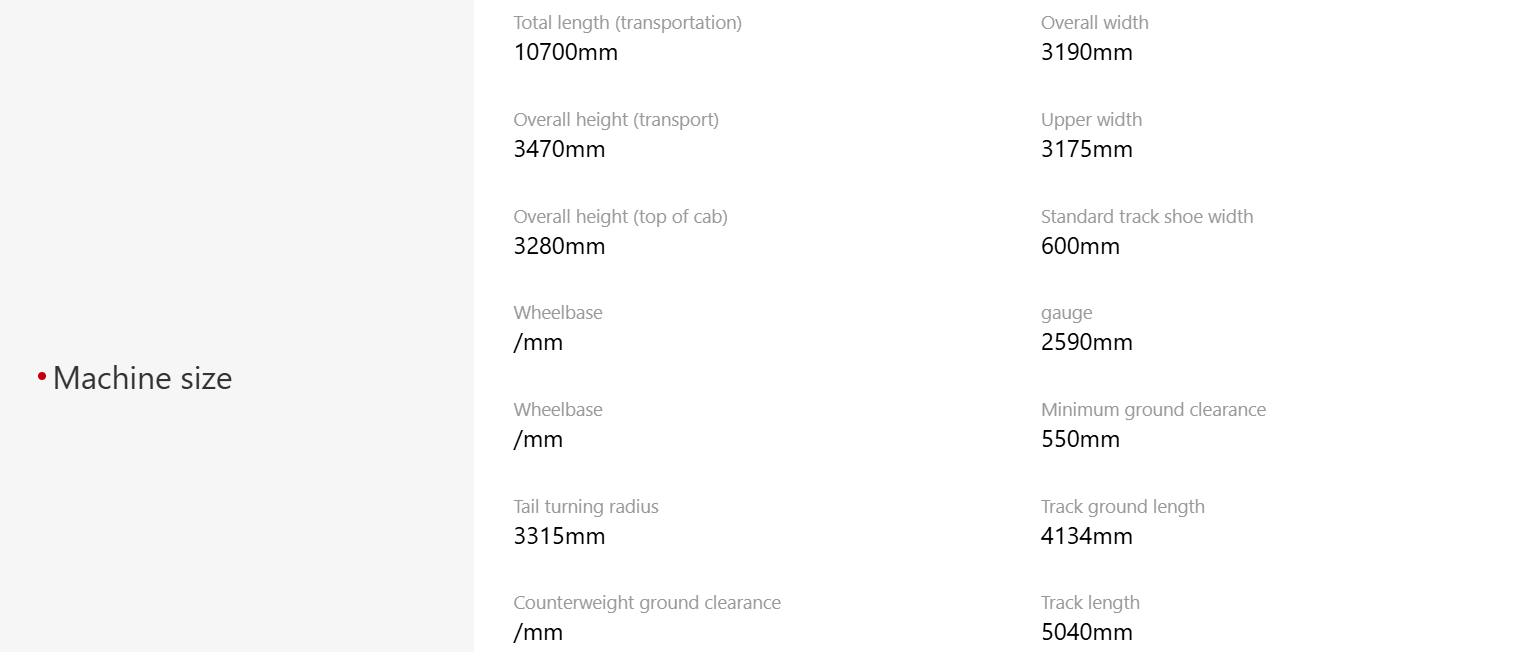

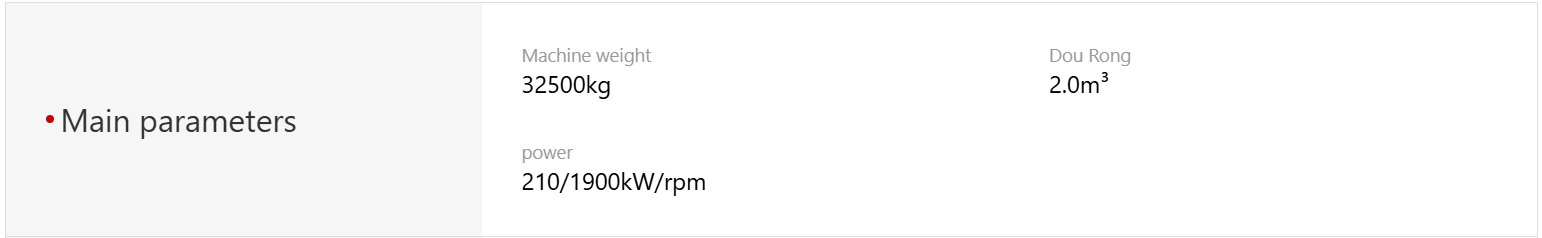

- Technical Specification
Power System: Isuzu 6HK1 engine, with a power output of 210kW. The turbocharger is upgraded to a VGT (Variable Geometry Turbocharger), offering faster response time and reduced fuel consumption.
Hydraulic System: Features a well-known brand of plunger pump and main valve with a pump displacement of 180CC, enhancing displacement. The fully electronic-controlled hydraulic technology improves coordination and leveling performance. The reduction gearbox is upgraded to the RG23, enhancing rotation ability and startup speed.
Boom Upgrade: Equipped with a 2.9m short boom, which increases the second-stage boost function and improves digging force.
Bucket Upgrade: Optionally equipped with a rock bucket, optimized bucket shape reduces friction. The angle between the front blade and support bottom plate is increased, improving excavation efficiency.
Intelligence: Upgraded 10-inch large screen. Wireless LAN supports 4G network OTA upgrades.
New Air Conditioning System: Smaller size, stronger cooling power, and more reasonable air distribution.
New Interior: Features a narrow armrest box, minimalist front control box, standard water cup holder, and 24V power outlet with USB interface.
Exterior Upgrade: The door cover parts are higher, and the strength of the side door is reinforced. The engine cover and toolbox lid are equipped with gas springs for easier operation.
